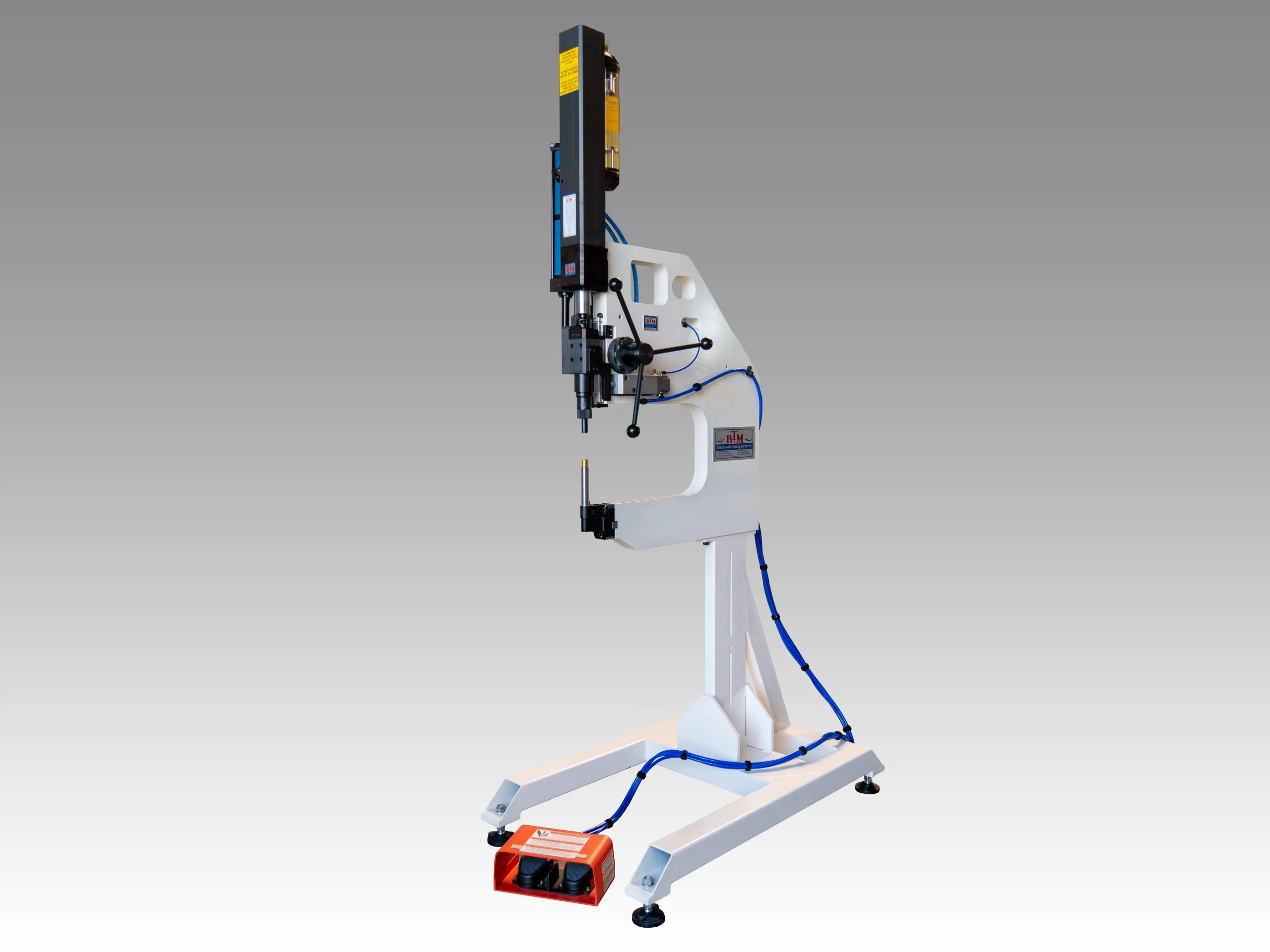

Manual Drive Clinch Unit MCP-44

Features & Specifications

  • Energy Supply: 5,5 bar (80 PSI) air

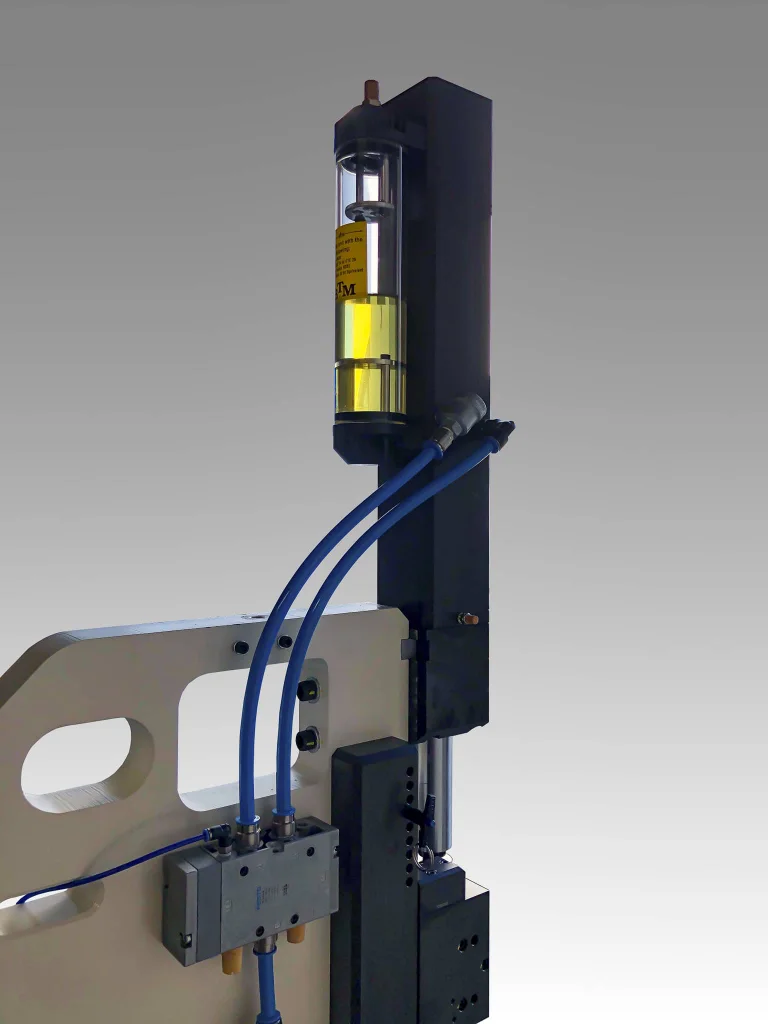

  • Power Supply: pneumo- hydraulic
  • Press Force: 45 kN
  • Power Stroke: 8 mm
  • Advance Stroke: 92 mm (manually)
  • Total Stroke: 100 mm
  • Throat Depth: 450 mm
  • Retract stroke adjustable via locking pin (12,5mm - steps)
  • Suitable for Tog-L-Loc® round, Lance-NLoc® rectangular and Oval-Loc® tools
  • Sheet Thickness: approx. 4 mm max.
  • Advance Stroke: by hand lever
  • Power Stroke: by foot pedal
