Hand-Held Clinch HHP-H73

The HHP-H73 mobile clinching pliers are purely pneumatically powered and feature a wide jaw opening and deep reach, combined with a relatively low weight. Thanks to their ease of use, they are ideal for use in HVAC installation as well as in many other applications and industries.

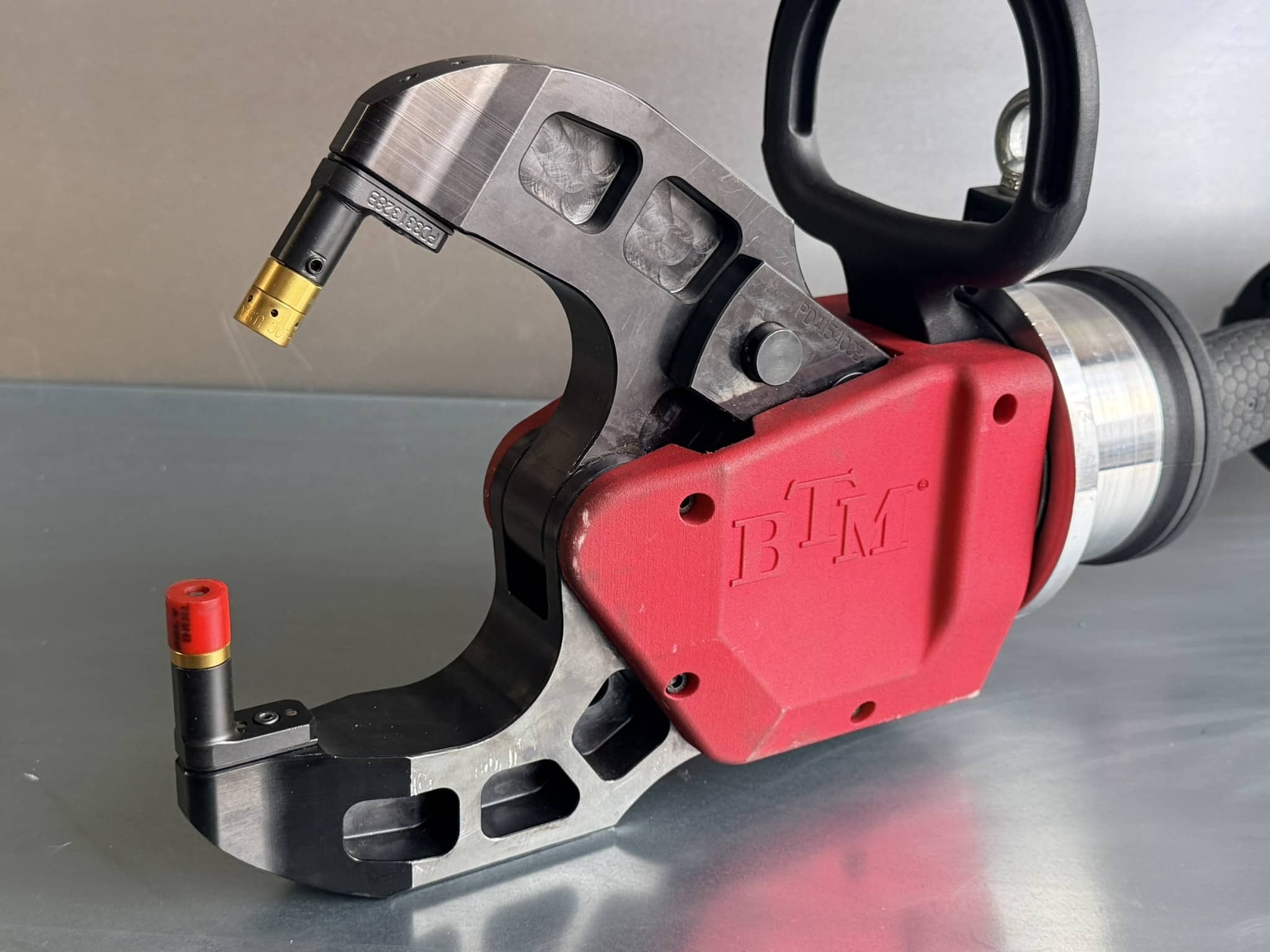

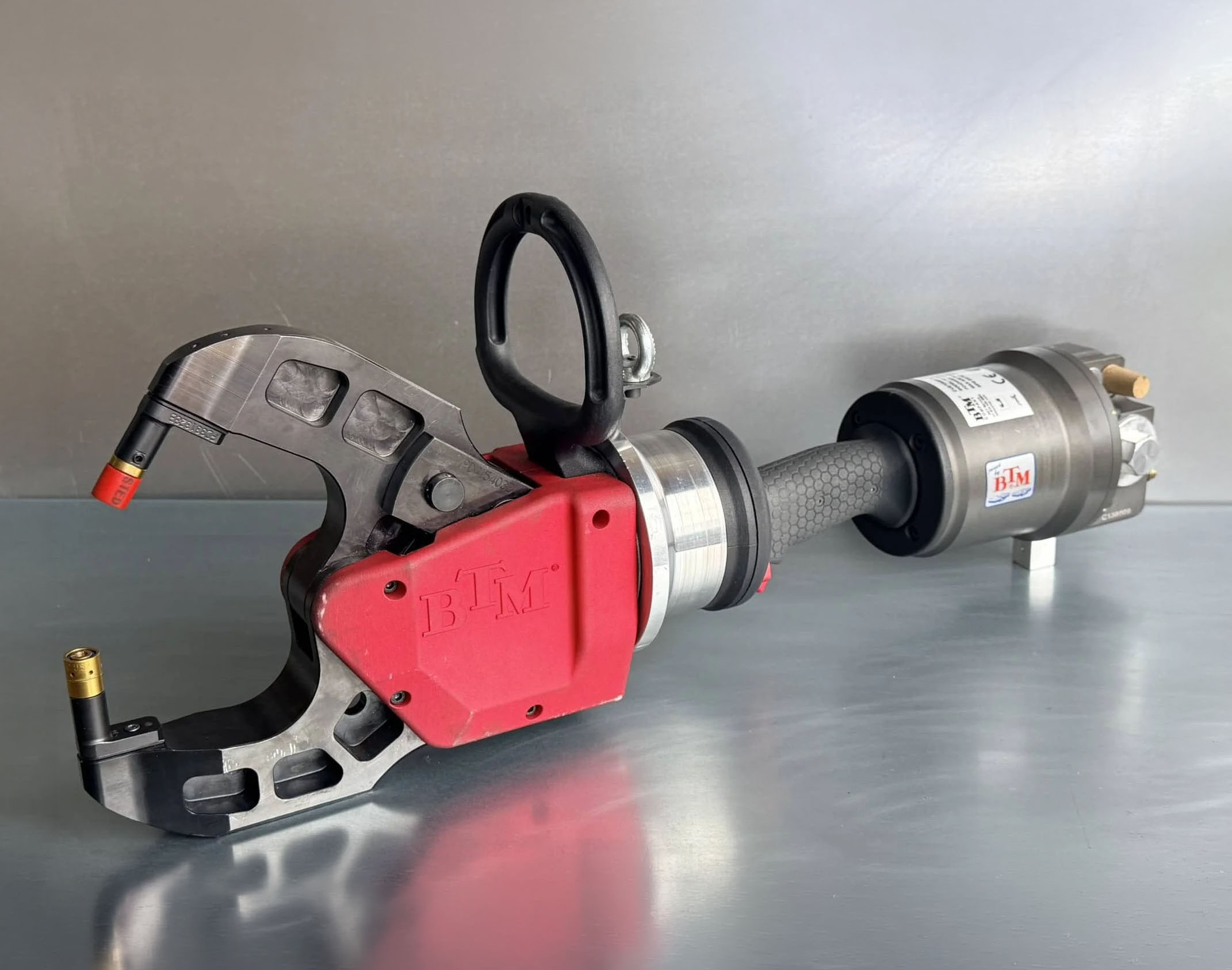

HHP-H73 Hand Clinching Tool

The HHP-H73 hand clinching tool was originally designed for use in the HVAC industry, but it is now highly valued by many customers in other sectors as well. Thanks to its perfectly balanced, very low weight and ergonomic handle, the HHP-H73 is widely accepted and preferred among operators. The horizontal suspension makes handling this tool even easier.

Features and Specifications

100 mm throat depth
Large 73 mm jaw opening (clear width) for easy access and positioning
Low weight (only 14 kg / approx. 31 lbs) with optimized weight distribution
360° rotation around the horizontal axis
Balanced suspension
Easy handling thanks to an ergonomic design
Fully pneumatic – requires only an air connection
35 kN pressing force
Compatible tooling: Suitable for Tog-L-Loc® round point, Lance-N-Loc™ rectangular, and Oval-Loc™ oval point clinching tools
Two-step trigger operation for easy 1-handed use:
- Closing and opening of the upper tool via a rocker switch
- Power stroke for clinching via a finger trigger
Large opening width, especially suited for HVAC manufacturing
Safe and highly repeatable working stroke
Fast clinch cycle of < 1 second
Eccentric mechanism for easy adjustment of the clinching depth
Vertical and horizontal suspension possible (by simply rotating the handle shells for ergonomic triggering)
