Hand-Held Clinch Unit ULG SN4
Hand-Held Clinch Unit ULG SN4

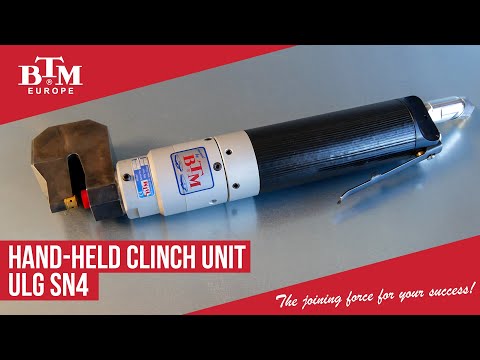

The pneumo-hydraulic BTM clinch and pierce unit ULG SN4 combines high joining force with rapid cycle time.
The integrated air-oil-booster runs silently and completely vibration-free. 6 bar air supply activates the drive system. The joining stroke can be released by a hand lever. Also a foot pedal release is available. BTM ULG clinch units offer an high level of integrity in use. The well-balanced, light-weight and ergonomical construction of this unit minimizes the stress on the user.
The modular designĀ ofĀ theĀ mobileĀ clinchingĀ units ULG-SN4Ā allowsĀ theĀ useĀ ofĀ aĀ wideĀ rangeĀ ofĀ toolĀ holders, suchĀ asĀ C-frame,Ā scissorĀ headsĀ andĀ variousĀ specialĀ holders. TheseĀ can be changedĀ in just aĀ few stepsĀ whileĀ theĀ driveĀ unitĀ remainsĀ the same.Ā
Features
- Clinch operation: tmax = 2,5 mm steel and aluminum
- Pierce operation: tmax = 2,5 mm at Ć 6 mm and mild steel
- Weight of āŗ 2,2 kg inclusiv C-frame
- max. 17 kN press force
- low air consumption (e.g. SN7: 0,26 l/cycle)
- very silent (< 75 db(A))
- vibration-free
- wide range of tooling heads
- rapid cycle time (ā¤ 1s)
- air supplyĀ 7 bar max.
