Mobile punching Handheld units ULG

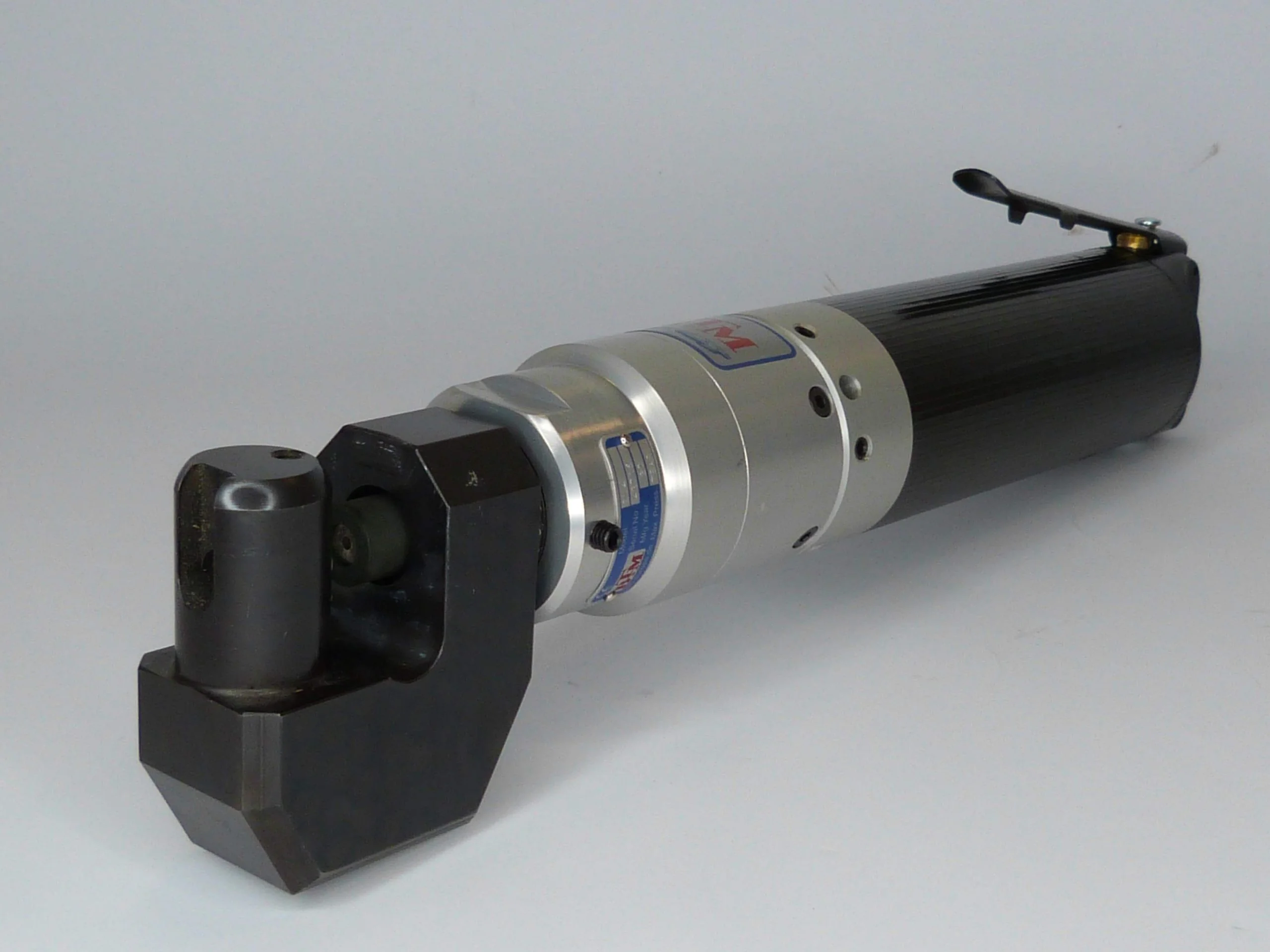

Cost-effective and highly mobile: the BTM pneumohydraulic punching tongs ULG! There is a choice of 4 device types. The ULG drives only require 6 bar air pressure and can apply press forces of 15 kN to 30 kN, depending on the size. The stroke is 7 mm, the punching stroke depends on the force and geometry.

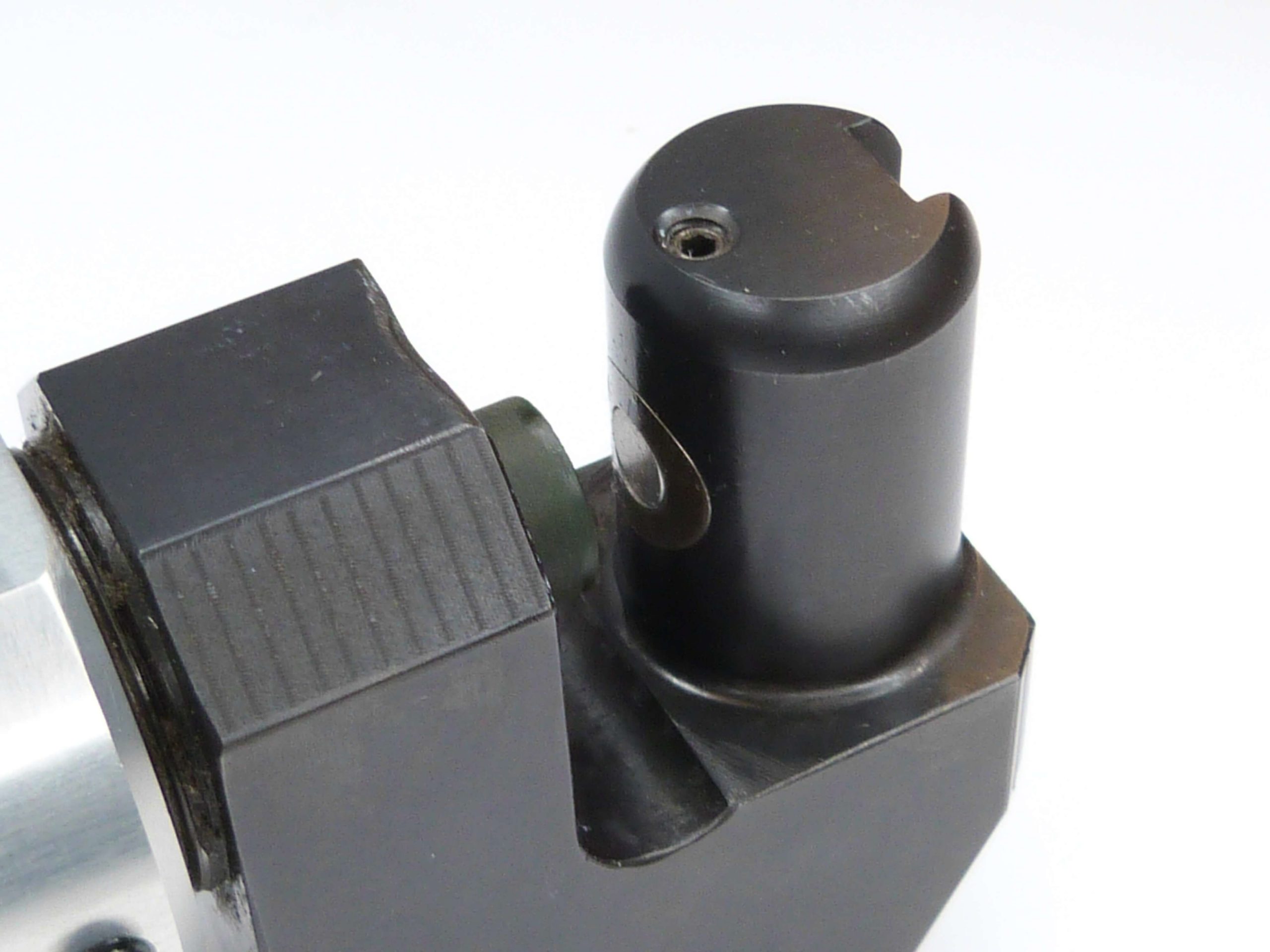

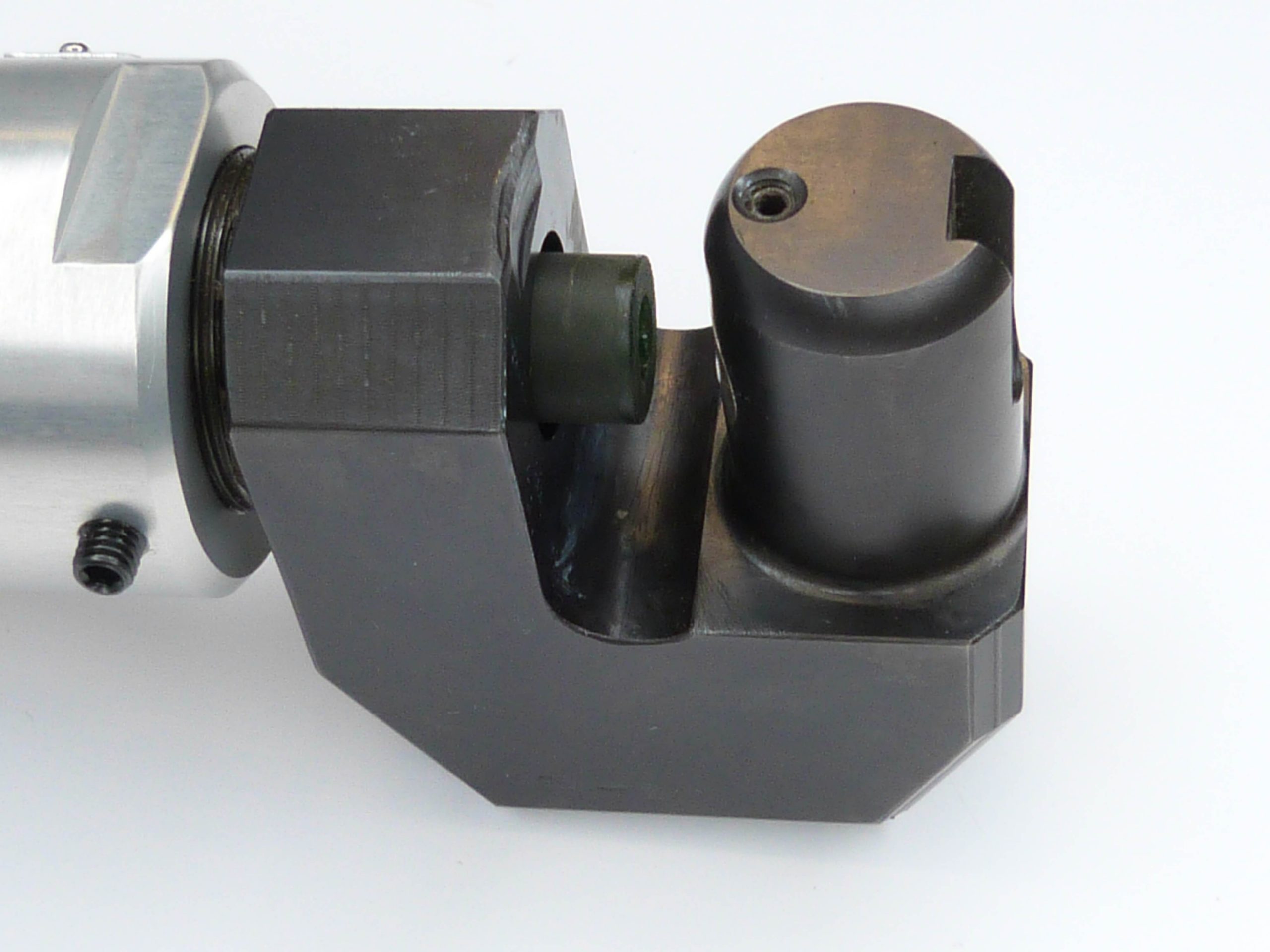

The connecting interface for many tools is standardised by BTM and can be used for a wide variety of C-frames and X-frames. Punchings in flat sheet metal, tubes or profiles are easily possible. Each bracket can be connected to the appropriate drive via the interface. The low weight of the ULG air/oil drives enables the operator to carry out punching applications overhead or manually with the hand-held device for long periods of time, even on site without auxiliary equipment.

Further areas of application for BTM ULG Hand pliers are available for embossing, cutting or clinching.

Features

18-29kN press force
low air consumption (0,75 l/cycle)
very silent (< 75 db(A))
vibration-free
rapid cycle time (≤ 1s)
air supply 7 bar max.
